Atexxo Manufacturing BV explosion proof air conditioners (ATEX) developed for 24/7 operation in high ambient (dessert/tropical) conditions. These split units are designed for safe use in zone 2 gas/vapor explosive atmospheres. ATEX Zone 2 is the European equivalent for US, NEC Class 1 Division 2 equipment. (C1D2)
| Voltage | 200-240 Volt (wider input range / 400V on request) |
| Frequency | 50/60 Hz |
| Type Split Unit | FBA = Ducted indoor unit (150 Pa) |
| Refrigerant | R32 or R410A |
| ATEX | Unit Assessment Certificate: Zone 2, II 3G; Ex ec h ic nC IIC T3 Gc (IECEx certification on request) |
| Order number | Atex Zone | Cooling Capacity | Heating Capacity | Refrigerant | Dimension indoor unit HxWxD (mm) / Weight (kg) | Dimension outdoor unit HxWxD (mm) / Weight (kg) |
|---|---|---|---|---|---|---|
| AIR-EX-FBA-35-R32 | Zone 2 | 12.000 BTU / 1.0RT / 3.5kW | 4.0 kW | R32 | 245x700x800, 28kg | 552x840x350, 32 kg |
| AIR-EX-FBA-50-R32 | Zone 2 | 18.000 BTU / 1.5RT / 5.0kW | 5.8 kW | R32 | 245x700x800, 28kg | 734x870x373, 49 kg |
| AIR-EX-FBA-60-R32 | Zone 2 | 20.000 BTU / 1.7RT / 6.0kW | 7.0 kW | R32 | 245x1000x800, 35kg | 734x870x373, 49 kg |
| AIR-EX-FBA-71-R32 | Zone 2 | 24.000 BTU / 2RT / 7.1kW | 8kW | R32 | 245x1000x800, 35kg | 870x1100x460, 81kg |
| AIR-EX-FBA-10-R32 | Zone 2 | 35.000 BTU / 3 RT / 10kW | 11 kW | R32 | 245x1.400x800, 46kg | 870x1100x460, 85kg |
| AIR-EX-FBA-12-R32 | Zone 2 | 43.000 BTU / 3.6RT / 12.5kW | 14kW | R32 | 245x1.400x800, 46kg | 870x1100x460, 94kg |
| AIR-EX-FBA-14-R32 | Zone 2 | 50.000 BTU / 4RT / 14kW | 16kW | R32 | 245x1.400x800, 46kg | 870x1100x460, 94kg |
| AIR-EX-FBA-35-R410A | Zone 2 | 12.000 BTU / 1.0RT / 3.5kW | 4.0 kW | R410A | 245x700x800, 28kg | 552x840x350, 32 kg |
| AIR-EX-FBA-50-R410A | Zone 2 | 18.000 BTU / 1.5RT / 5.0kW | 5.8 kW | R410A | 245x700x800, 28kg | 734x870x373, 49 kg |
| AIR-EX-FBA-60-R410A | Zone 2 | 20.000 BTU / 1.7RT / 6.0kW | 7.0 kW | R410A | 245x1000x800, 35kg | 734x870x373, 49 kg |
| AIR-EX-FBA-71-R410A | Zone 2 | 24.000 BTU / 2RT / 7.1kW | 8kW | R410A | 245x1000x800, 35kg | 870x1100x460, 81kg |
| AIR-EX-FBA-10-R410A | Zone 2 | 35.000 BTU / 3 RT / 10kW | 11 kW | R410A | 245x1.400x800, 46kg | 870x1100x460, 85kg |
| AIR-EX-FBA-12-R410A | Zone 2 | 43.000 BTU / 3.6RT / 12.5kW | 14kW | R410A | 245x1.400x800, 46kg | 870x1100x460, 94kg |
| AIR-EX-FBA-14-R410A | Zone 2 | 50.000 BTU / 4RT / 14kW | 16kW | R410A | 245x1.400x800, 46kg | 870x1100x460, 94kg |
The units have integrated heat pump function for both heating and cooling. In Hot climates only the cooling mode can be selected. The Explosion Proof Air conditioners and ATEX split units are equipped with European approved R-32 refrigerant, with zero ozon depletion potential (ODP) and a low global warming potential (GWP) of just 675, or equipped with the established R410A refrigerant.

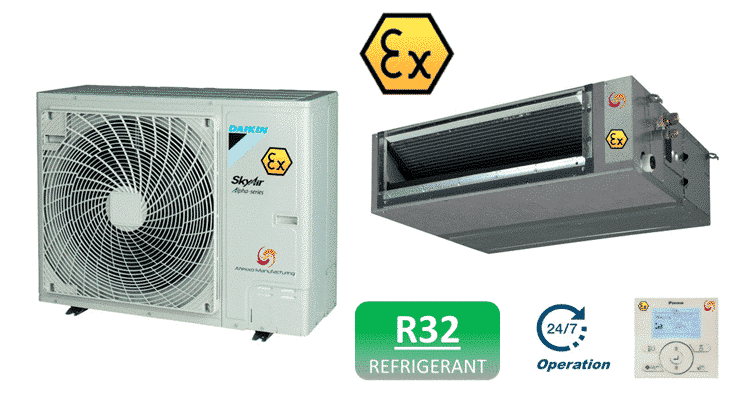

Conversion to ATEX explosion proof is in line with Atexxo’s philosophy of providing excellent explosion protection while maintaining all features of the original product. This makes the ATEX Air conditioners easy to install and operate. The sets consist of ATEX approved outdoor-, EX rated ducted indoor unit for concealed ceiling applications and explosion proof wired remote controller.
Applications:
Benefits:
Safe Operations in ATEX Hazardous Zone 2 Classified Areas
Using multiple explosion protective measures to ensure safe operations in hazardous environments. Conversion to ATEX explosion safe is in line with Atexxo’s philosophy of providing excellent explosion protection while maintaining nearly all features of the original product. This makes the ATEX Air Conditioners easy to install and operate.

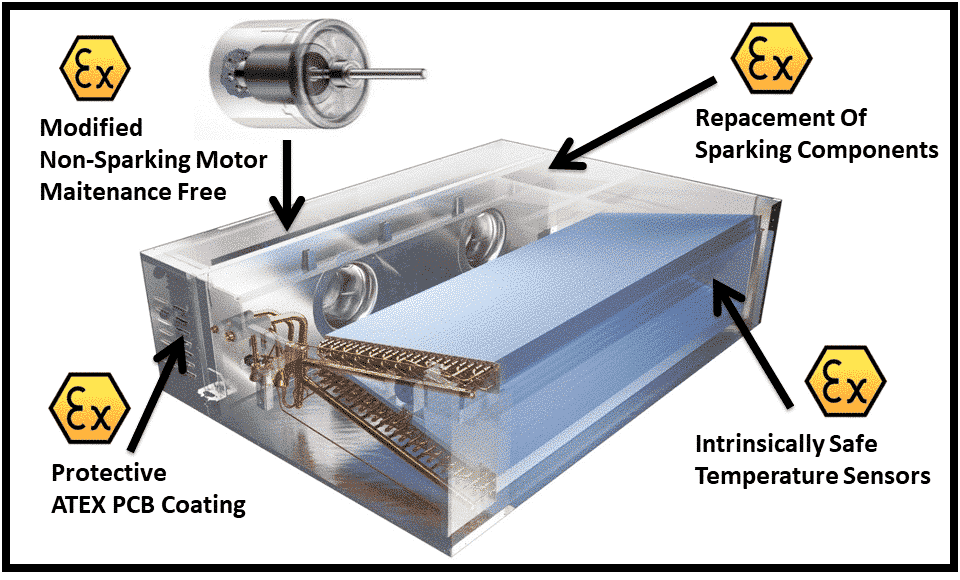

Intergraded anti-explosive protective measures
Please contact us for other capacities and or configurations e.g. multi-split systems or chillers.
